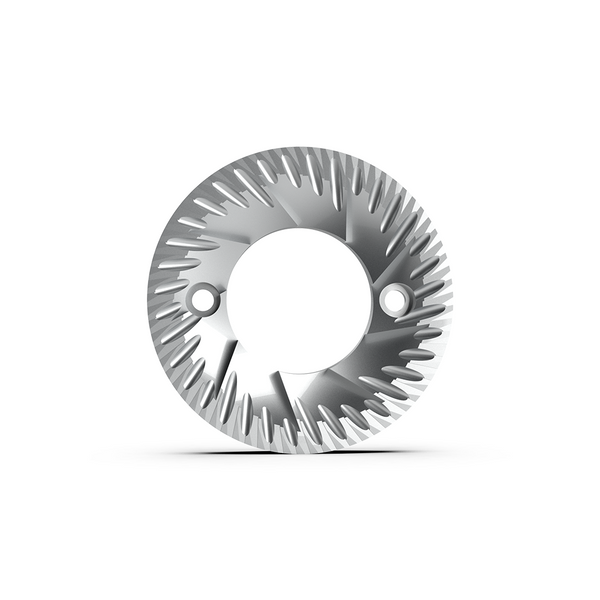

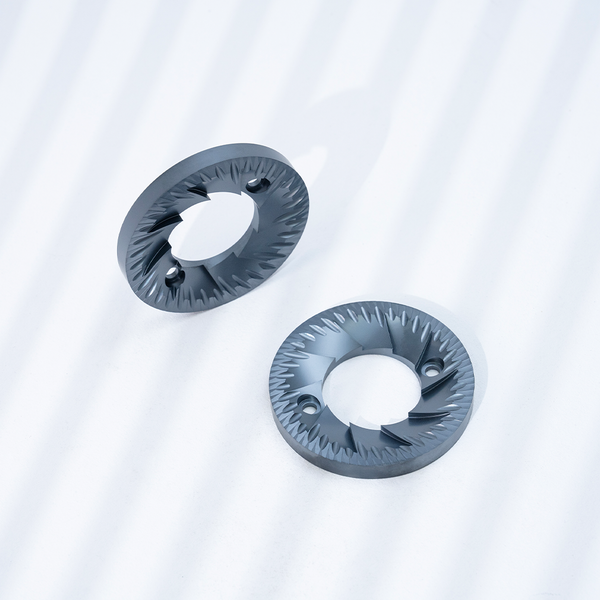

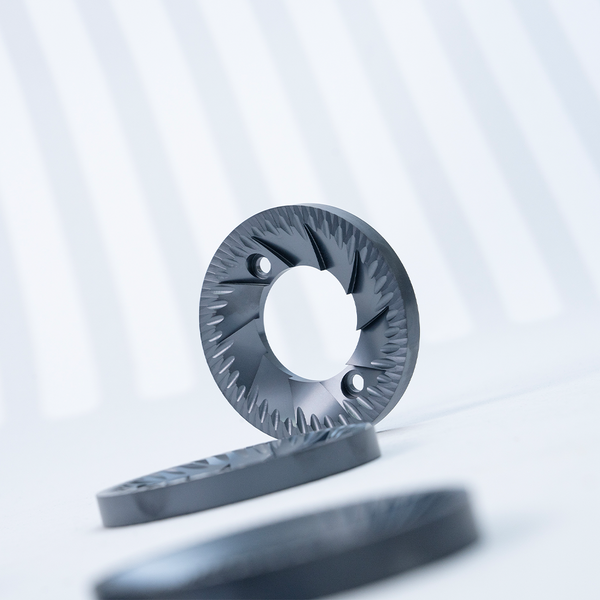

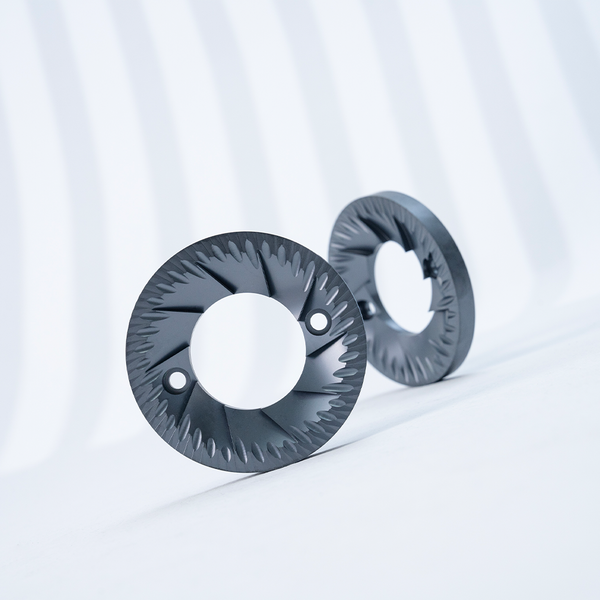

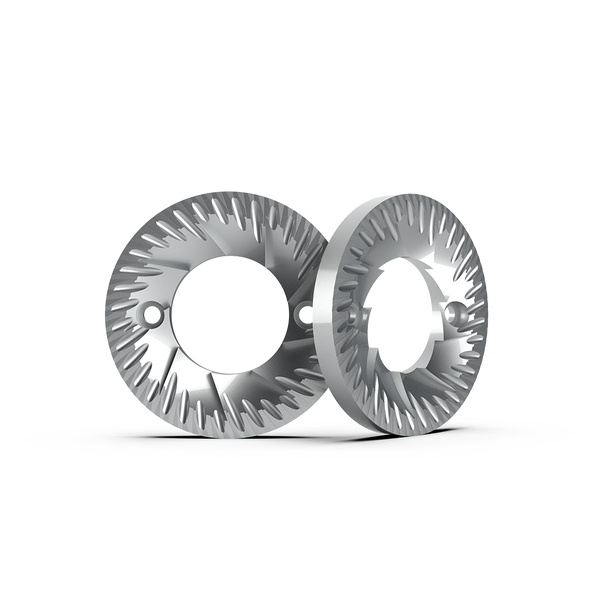

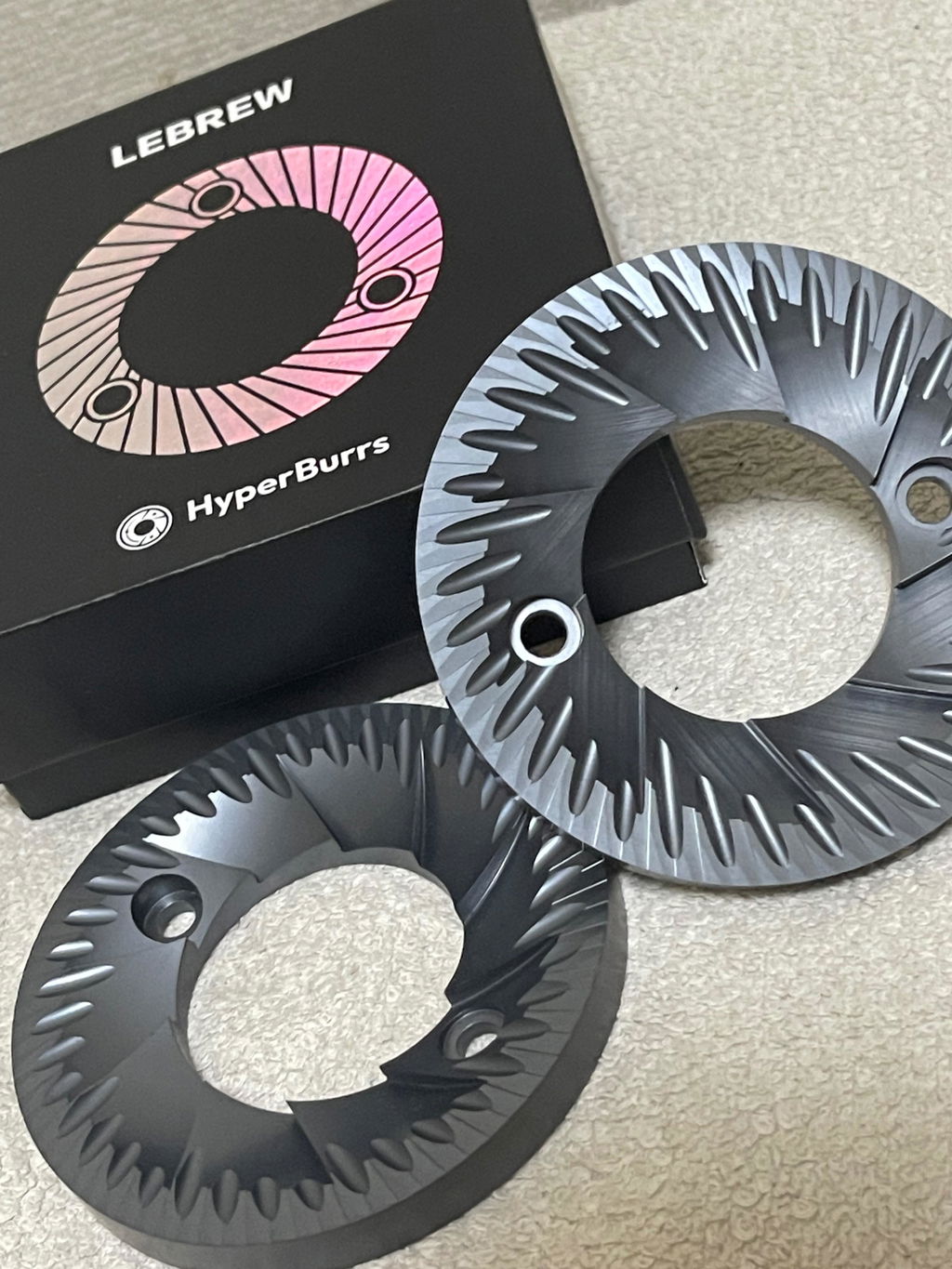

LeBrew 78mm Coffee Grinder Burrs – TiAlN Coated Flat Burr Set
Photos
Photos
LeBrew 78mm Series
LeBrew 78mm Series
LeBrew 78mm Series
LeBrew 78mm Series
LeBrew 78mm Series
LeBrew 78mm Series
LeBrew 78mm Series
LeBrew 78mm Series

LeBrew 78mm Series

LeBrew 78mm coffee grinder burrs with advanced TiAlN coating for durability and precise grind consistency. Designed for balanced extraction and clarity. Compatible with Timemore 078 and 078S grinders.

$139.00
$139.00
$139.00
Technological Superiority

●Recommended：The first choice for Pour-over. ●Materials：DC53 （Specialty steels) ●Burr hardness：60-62 HRC (Rockwell) ●Coating：TiAlN (Conductive)   ●Service life：2500-3000kg

Version Difference

The Filter and ESP versions differ primarily in the geometry of the triangular cutting zone and the depth of the exit channels. The Filter version features a slightly larger triangular grinding zone and shallower exit channels, which promotes a more gradual particle size reduction and helps produce a cleaner, more transparent cup profile suited for filter brewing. The ESP version uses a more compact triangular zone combined with deeper exit channels. This geometry increases grinding efficiency and supports finer particle control, making it better suited for espresso extraction where higher resistance and precise grind size are required.

Quantity
Notify me
Warranty
icon
×
Warranty

LeBrew ensures reliable performance with a one-year warranty covering materials and workmanship. If you encounter any issues, we’re here to help with expert support, repairs, or replacements.

For any warranty or service inquiries, please contact us. Customer service team will wholeheartedly support you.

Adaptable Grinder
icon
×
LeBrew 78mm Adaptable Grinder

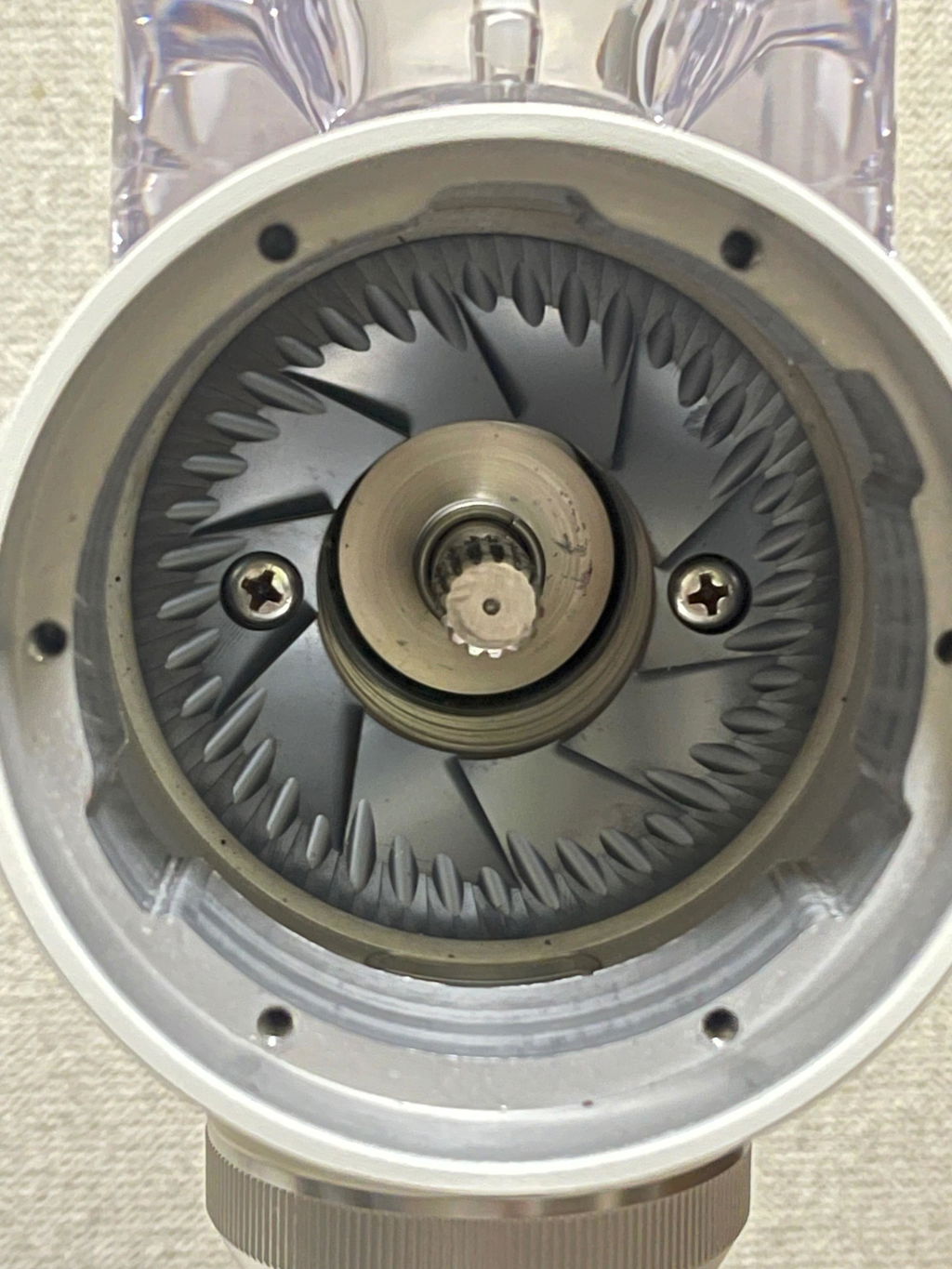

Tested by LeBrew Burr Lab, the following grinders are compatible:

TimeMore
Sculptor 078
Sculptor 078S

Compatible with 98% of coffee grinders on the market, with continuous updates on supported brands and models. If your grinder isn’t listed, contact us—we’ll verify compatibility for you.

Flavor Description
icon
×
LeBrew 78mm Flavor Description

* The data comes from the LEBREW Coffee Lab, where LEBREW organizes 50 coffee lovers to score the flavor of coffee ground by different burrs after cupping. The data is subjective and is for reference only.

Light Roast
Light Roast
Medium Roast
Medium Roast
Dark Roast
Dark Roast
Sweetness
Aftertaste
Clean Cup
Balance
Fragrance/Aroma
Flavor
Acidity
Body
Light Roast

Agtron

88.5

Bean

Ethiopia

Processed

Natural

pH (Water)

7.2

TDS (Water)

80ppm

Medium Roast

Agtron

75.9

Bean

Ethiopia

Processed

Natural

pH (Water)

7.2

TDS (Water)

80ppm

Dark Roast

Agtron

50.6

Bean

Ethiopia

Processed

Natural

pH (Water)

7.2

TDS (Water)

80ppm
LeBrew 78mm Series
LeBrew 78mm Series
LeBrew 78mm Series
LeBrew 78mm Series
LeBrew 78mm Series
LeBrew 78mm Series
LeBrew 78mm Series
LeBrew 78mm Series

BURRPHYSICS LAB

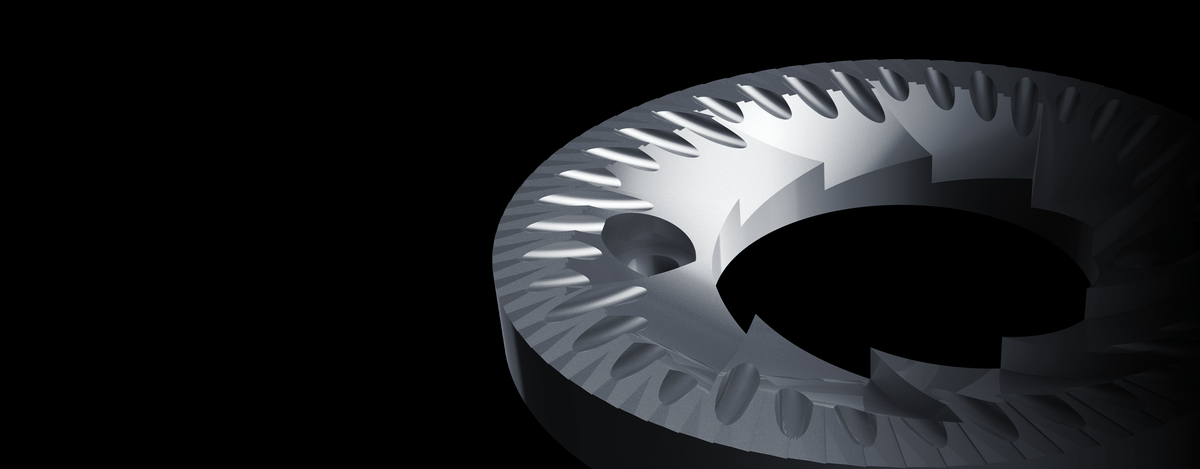

Explore Burr Geometry

Inspect the burr design, coating, and key engineering details in an interactive view.

Burr Options

3D model unavailable
78 mm

Performance Profile

Clarity
82%
Body
90%
Durability
90%

LeBrew 78mm Filter

Commercial and Home - Use Coffee Grinder Burrs

Superhard base materials

Originating from a globally leading steel material company.
Made of high carbon medium chromium Cold Work Die Steel Cr8Mo2SiV via electroslag remelting.
Rockwell hardness can reach 60 - 62 HRC.
Reinforced Special Coating

High-purity target materials.

3μm
Effective hardness boost
800℃
Superior thermal stability
3000 HV
Extended burr lifespan

Sharp and More Durable

Layer-by-layer polished with the Conductive Coating added.
The 78mm burrs can grind up to 2500 - 3000 kg.

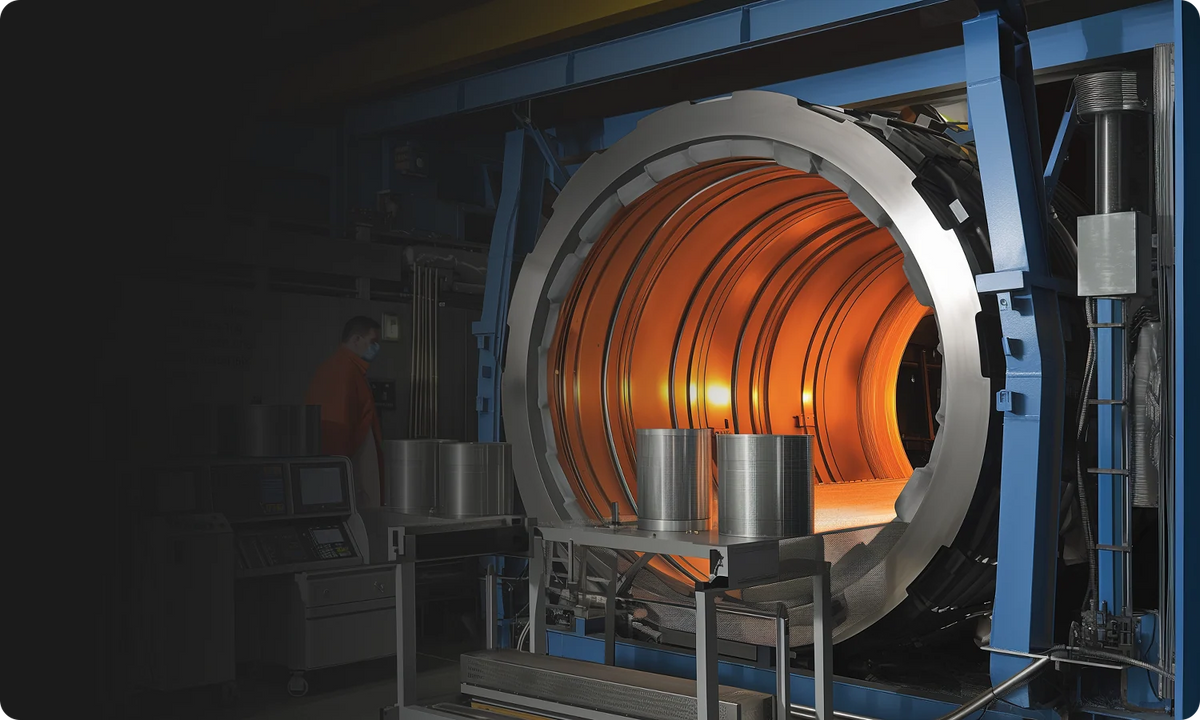

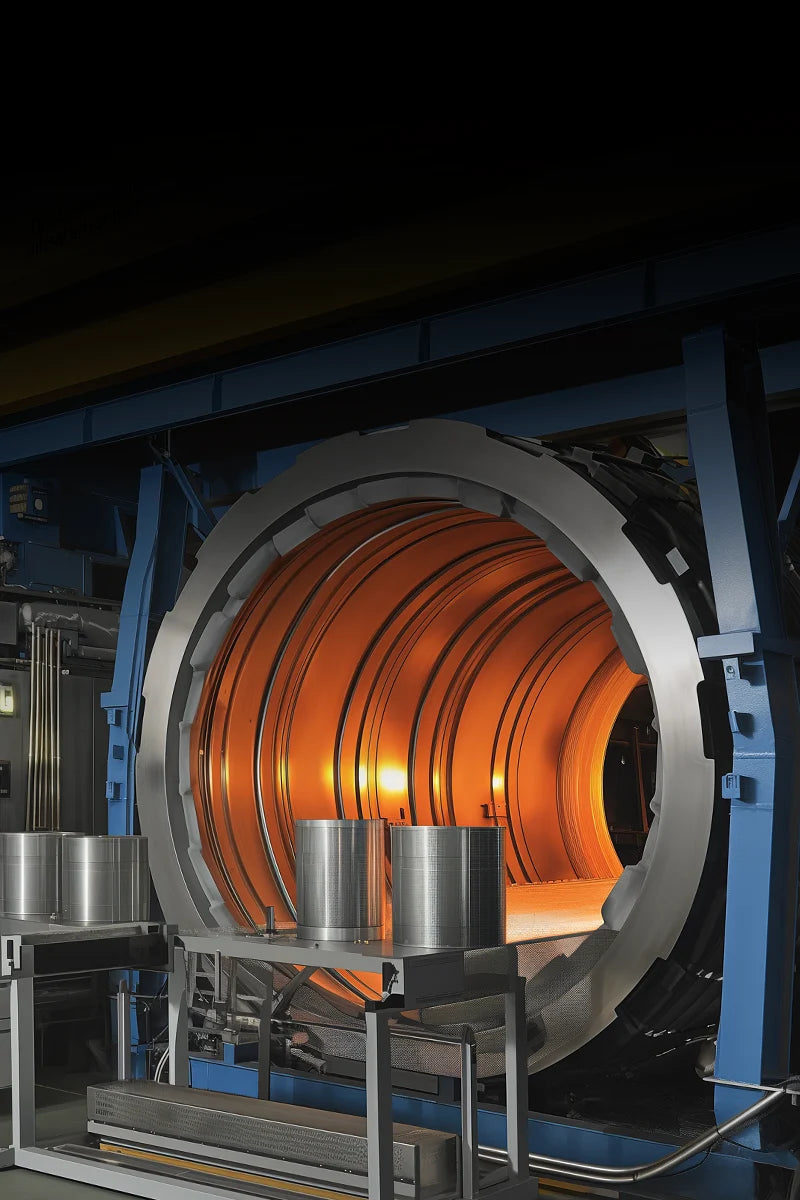

Burrs Heat treatment Burrs Heat treatment

Heat treatment with coating boosts rust prevention

Heated at an ultra high temperature of 1040℃.
Underwent three precise tempering processes.
Features stable dimensions, high hardness, great wear resistance and good corrosion resistance.

Simulation Design

Optimize burrs' grinding effect with Particle Dynamics Simulation .
Equivalent ball diameter of simulated particles,Relative volume fraction of the actual equivalent particle size class,Simulated particle size.

Simulation Design Simulation Design
Simulation Design Simulation Design
Simulation Design Simulation Design

All-round Precision Grinding

Imported multiple 5-axis High-Precision Burrs Processing Machines.
Handles diverse machining like planes, inner/outer circles, and cutter teeth.
Adopt full grinding process to ensure accurate dimensions.

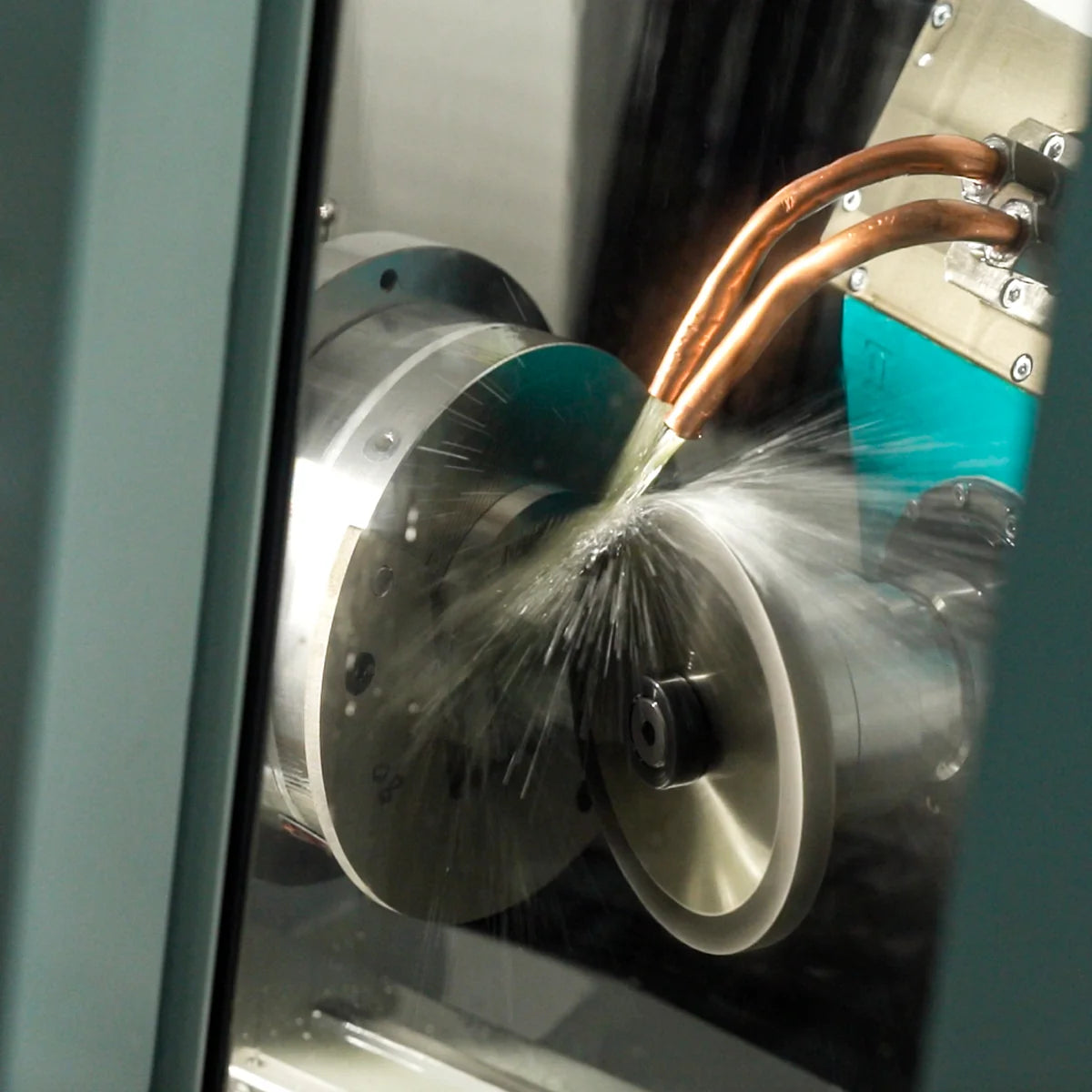

Burr Grinding Inside and Outside Diameter Burr Grinding Inside and Outside Diameter
Fine grinding of burr Fine grinding of burr

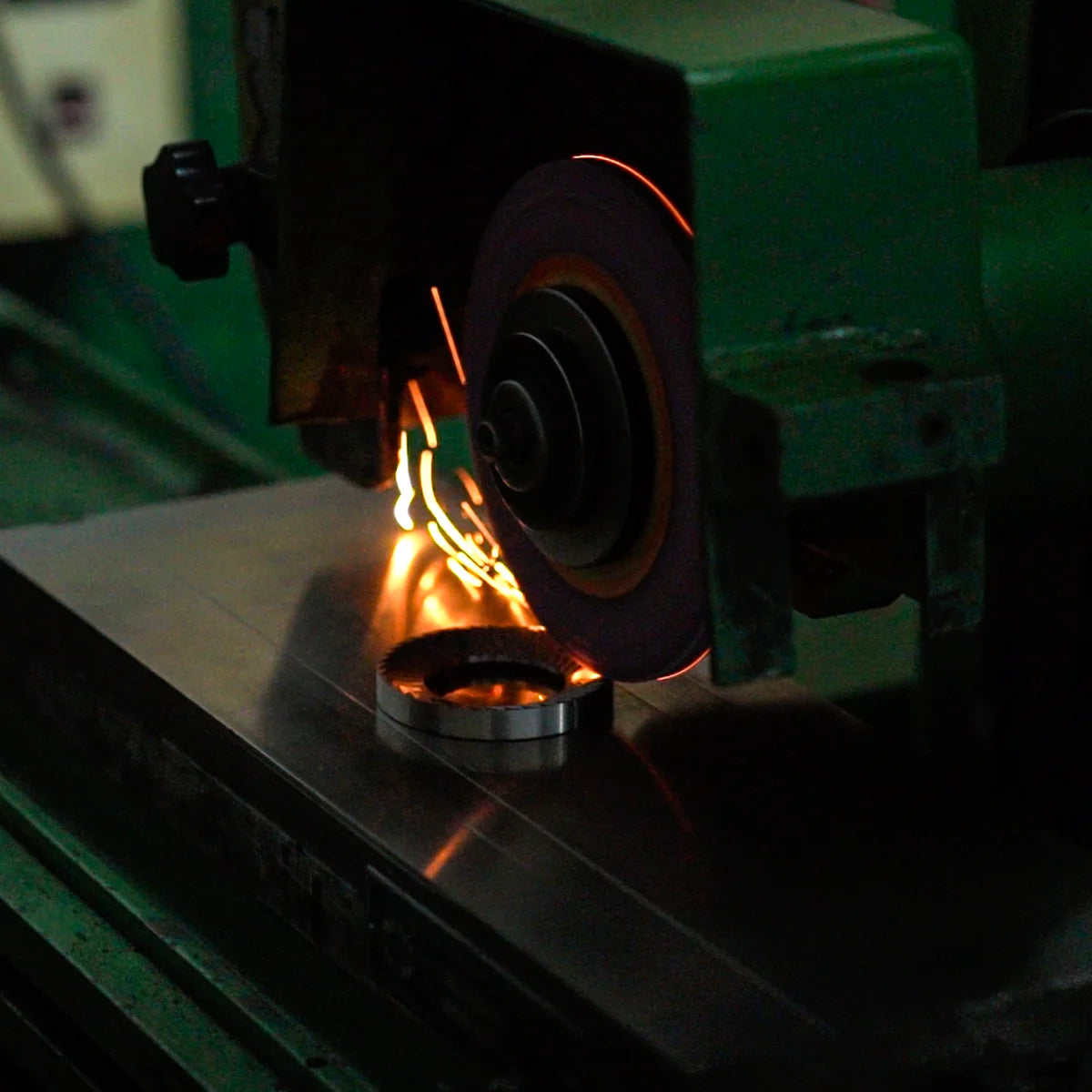

Parallelism of grinding burrs Parallelism of grinding burrs
particle size analyzer particle size analyzer

Particle size analyzer

The CAMSIZER X2 model is from the German Microtrac MRB brand.
This model uses the dynamic image method to analyze the Particle Size and Shape Distribution.

Strict Quality Control

We conduct Millimeter - level checks on the burrs.

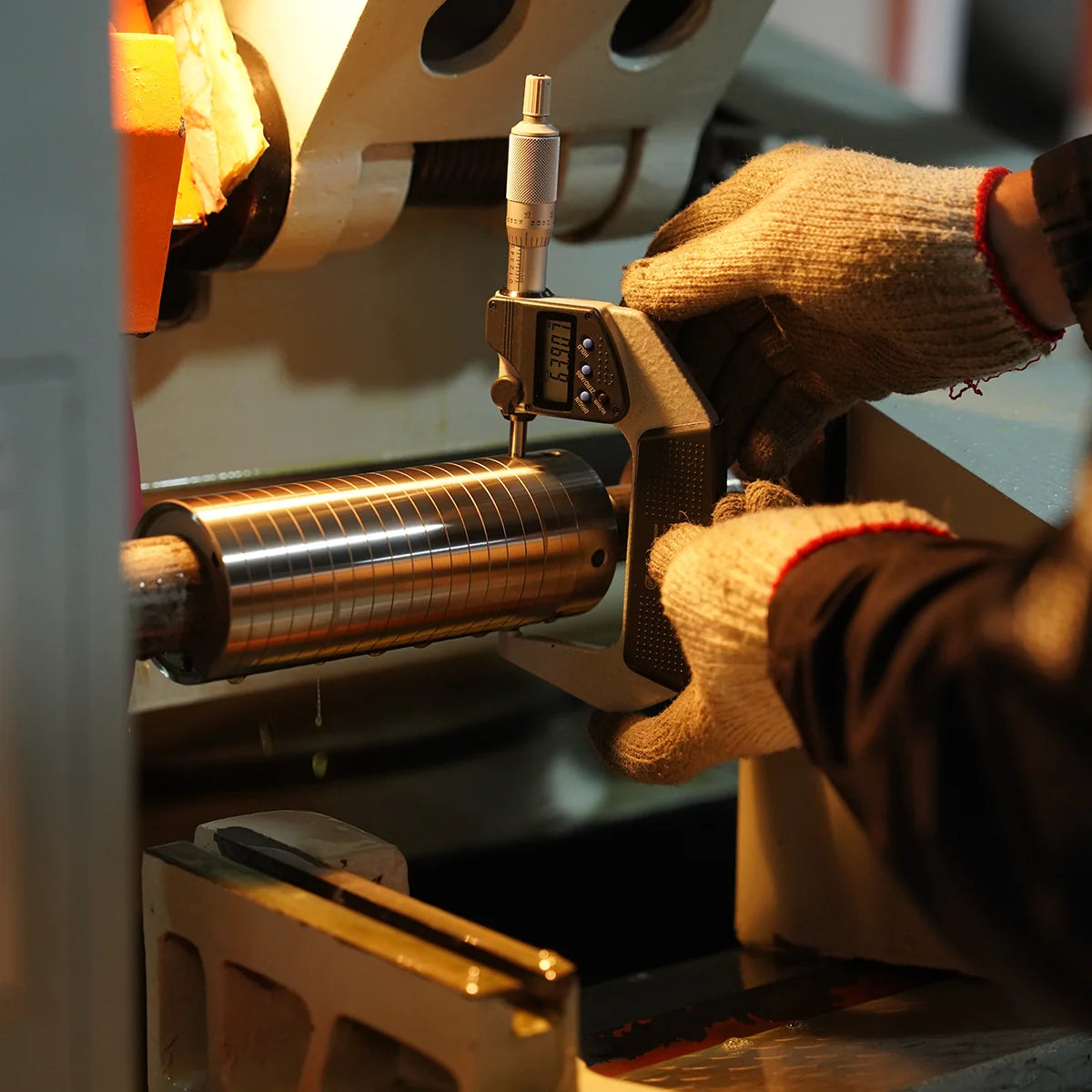

coordinate inspection coordinate inspection

coordinate inspection

Check whether the dimensions are in compliance
Burrs inspection Burrs inspection

Burrs inspection

Check the integrity of the burrs.
78mm Filter Flavor

Organized 50 coffee enthusiasts for cupping and scoring.
Compared flavors of the same burrs under different roastings.
Experimental data from LeBrew Burrs Laboratory.

Light Roast

Medium Roast

Dark Roast

LeBrew 78mm Filter

Burrs Packaging and Details
